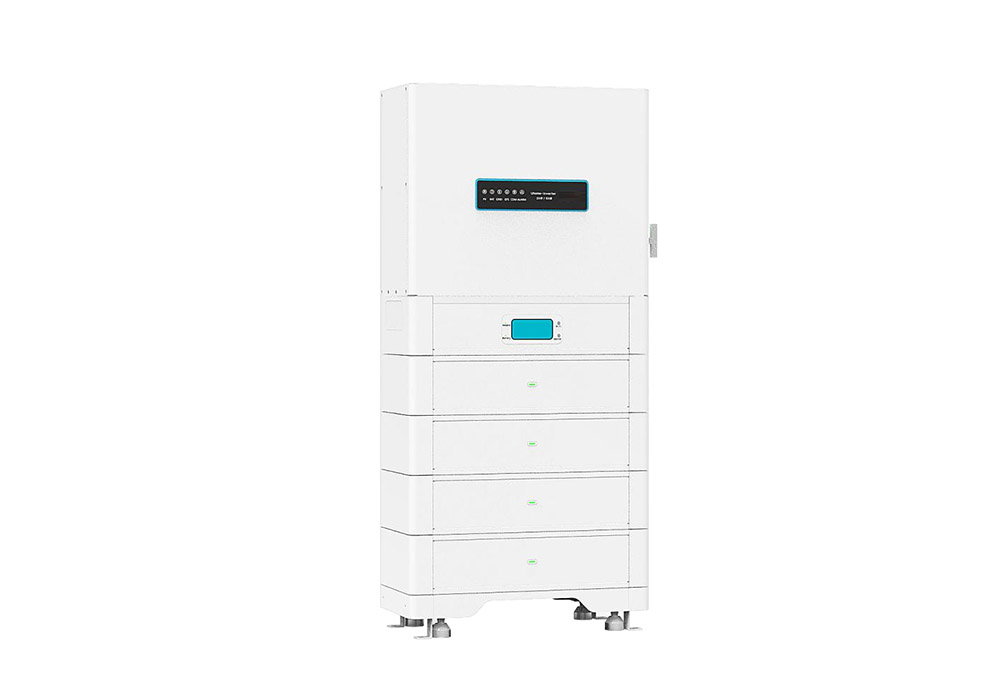

4K6HB-60/120 /5KHB-60/120/ 6KHB-60/120 Energy Storage Lithium Battery

Safety and reliable LFP chemistry; Long service life; Intelligent BMS built-in; Compact size for easy installation; Diverse model options and Expansion; Many inverters compatible.

8618962607209

fly01@flynewenergy.com

8618962607209

4K6HB-60/120 /5KHB-60/120/ 6KHB-60/120 Energy Storage Lithium Battery

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Technical Specifications

Model	4K6HB-60	4K6HB-120	5KHB-60	5KHB-120	6KHB-60	6KHB-120
Max.efﬁciency (PV to AC)	97.3%
Max.efﬁciency (BAT to AC)	94.0%
MAX PVPower (W)	9000
Max PV voltage (V)	550
Max input current (input A/input B) (A)	15/15
Max short current (input A/input B) (A)	20/20
Start operating voltage (V)	90
MPPT voltage range @full load (V)	200-480				230-480
No.of MPPT trackers	2
String per MPP tracker	1
Compatible battery type	Lithium-ion/Lead-acid
Nominal battery voltage (V)	48
Battery voltage range (V)	40-60
Max. charge/discharge current (A)	60/60	120/120	60/60	120/120	60/60	120/120
Max. charge/discharge power (W)	3000/3000	5000/5000	3000/3000	5000/5000	3000/3000	6000/6000
Lithium battery charge curve	Self-adaption to BMS
Nominal AC output power (W)	4600	4600	5000	5000	6000	6000
Max. AC output apparent power (VA)	4600	4600	5500	5500	6000	6000
Max.AC output power (PF=1) (W)	4600	4600	5500	5500	6000	6000
Max. AC output current (A)	22	22	25	25	27.2	27.2
Rated AC voltage (V)	220
AC voltage range (V)	150-300 (adjustable)
Rated gird frequency (Hz)	50/60
AC frequency range (Hz)	45-55/55-65 (adjustable)
Grid connection	single phase
Power factor	> 0.99 @rated power (adjustable 0.8 LG - 0.8 LD)
THDI	<3%
Nominal output voltage (V)	230
Nominal output frequency (Hz)	50/60
Nominal output power (W)	3000	4600	3000	5000	3000	6000
Nominal output current (A)	13	20	13	21.7	13	26
Transfer time (ms)	10(typ) / 20(max)
THDV	<3% @100% R Load
Protection category	Class I
DC switch	Support
Anti-islanding protection	Support
AC overcurrent protection	Support
AC short circuit protection	Support
DC reverse connection	Support
Surge Arrester	DC Type III, AC Type III
Insulation detection	Support
Leakage current protection	Support
PV overvoltage category	II
AC overvoltage category	III
Max. operation altitude (m)	4000
Noise emission (dB)	<35
Ingress protection degree	IP65
Operating temperature range ( C)	-25~60
Relative humidity (%)	0~100
Cooling concept	Natural Cooling
Mounting	Wall bracket
Dimensions (WHD)	515450175mm
Weight (kg)	20	25	20	25	20	25
PV connection way	MC4/H4
Battery connection way	Dedicated DC connector
AC connection way (grid & back up)	Dedicated AC connector
Display	LED+APP
Communication interface	RS485/CAN(for BMS), RS485, USB, Ethernet, DRM/RS485 (for Meter), Optional: WiFi/GPRS
Grid	VDE-AR- N4105, IEC 61727/62116, AS 4777.2, EN 50549-1
Safety	IEC62109-1&2, IEC62040-1, IEC62477-1
EMC	IEC61000-6-2/3
Warranty (years)	5/10 (optional)
The range of output voltage and frequency may vary depending upon different grid codes. Speciﬁcations are subject to change without advance notice.

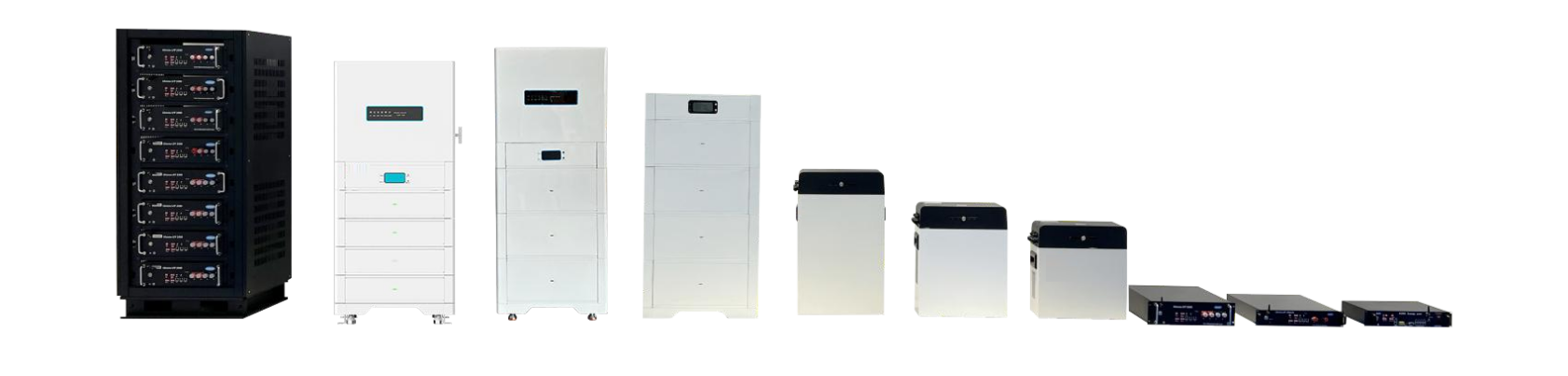

Energy Storage System Product Series

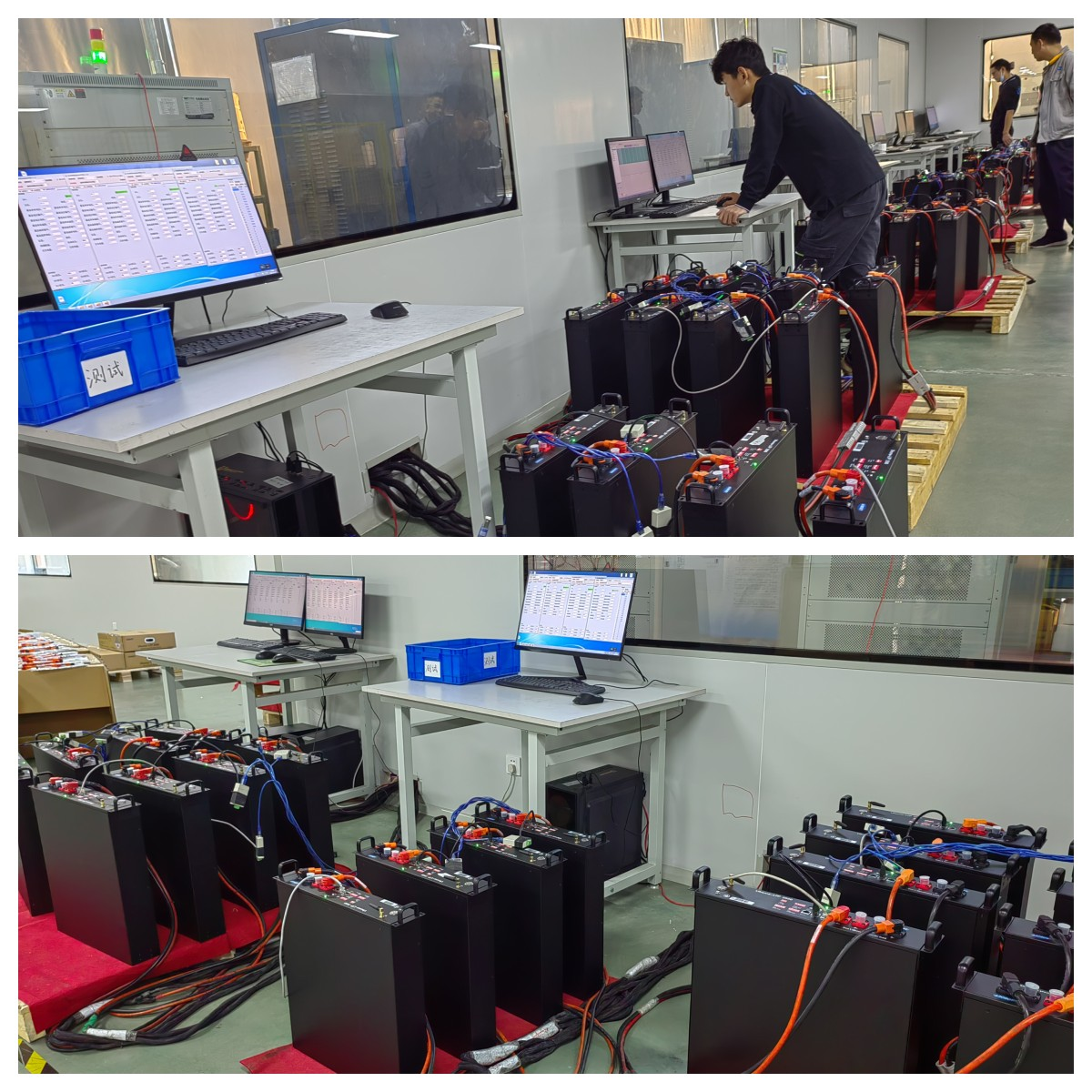

Product Testing

The product has complete quality inspection. Before delivery, each equipment must pass three tests to ensure 100% product qualification rate.

1. Each battery will be tested in the whole process of charging and discharging before shipment, and the data will be saved;
2. Test internal resistance and differential pressure;
3. Wifi distribution network (the background has online records).

Company Advantage

Jiangsu FLY Technology is a manufacturer specializing in the production and processing of lithium batteries, focusing on the production of lithium batteries for household energy storage systems.

At present, our lithium battery energy storage products have obtained ISO9001 certification, CE certification, and battery UN38.3 road transport certification, and have passed many tests such as explosion-proof, waterproof and anti-collision.
