LFP 5kWh/LV Lithium Battery Storage

FLY Lithium battery series are widely used in solar systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery cell, has won global approval!

8618962607209

fly01@flynewenergy.com

8618962607209

LFP 5kWh/LV Lithium Battery Storage

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Technical Speciﬁcations

Home Energy Storage System
Rechargeable Lithium ion Battery Pack
Model		LFP 5kWh/LV
Total Energy		5.1kWh
Usable Energy(DC)		4.8kWh
Voltage		48~56Vd.c
Nominal Voltage		51.2Vd.c
Rated Capacity		100Ah
Efficiency		>97%
Nominal Current		60A
Nominal Dis-/Charge Power		3.0kW
Peak Power(Only Discharging)		7.0kW for 3sec.
Operating condition		Indoor or outdoor
Operating Temperature	Charge	0℃~50℃
	Discharge	-10℃~55℃
Weight		55kg
Dimension(mm)		525537238mm
IP Rating		IP65
Protective Class		I
Max numbers of parallel or series connection		4

Features

Applications

Advantages

Lithium ion battery has higher energy density, smaller volume for household.

High quality battery, built in BMS monitors its operation, providing multiple protection for the battery.

Support Connected in parallel mode for expansion.

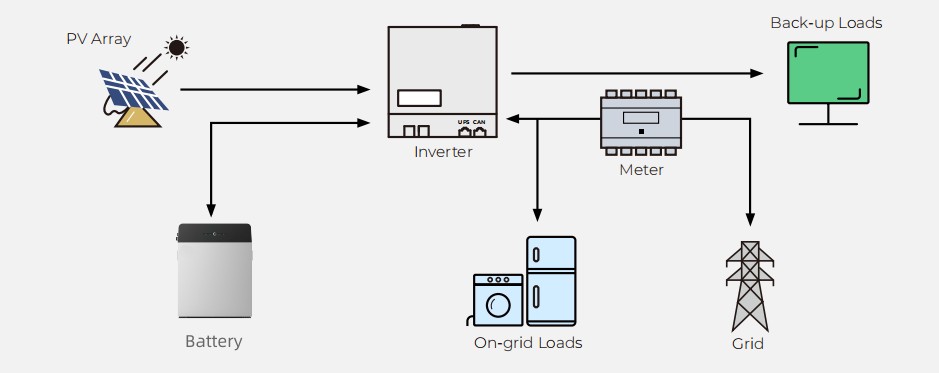

Household solar energy system: this battery pack is designed for household solar energy storage systems.
