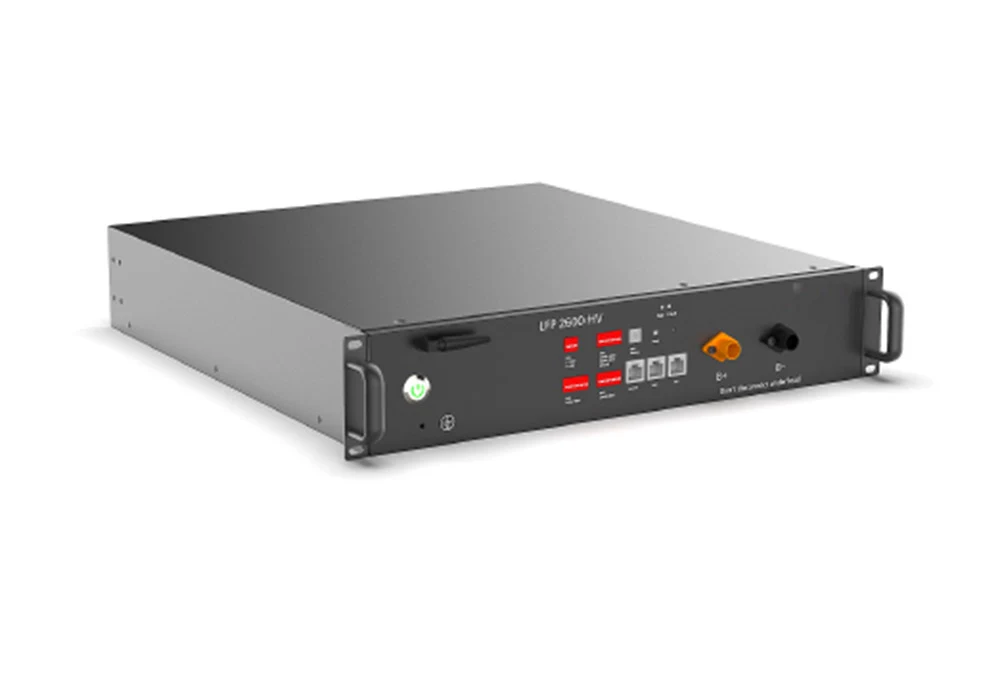

LFP 2600HV Energy Storage Battery

FLY storage lithium battery has compact design, convenient setting buttons, bluetooth Monitor on your smartphones, cables & accessories ready for installation.

8618962607209

fly01@flynewenergy.com

8618962607209

LFP 2600HV Energy Storage Battery

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Key Features

●Assembly freely in series or parallel

Up to 8S8P(448V326.4KWH)

●High energy efficiency

Energy efficiency (charge and discharge)>97%

●High Rate charge & discharge

Nominal 0.6C, Max 0.8C

●More Safety

Dual hardware &Triple software protection

●Safe and Reliable BMS

Relay design instead of mosfet

●Long Life

Reliable LFP cells,Cycle life >6000cycles

●High Reliability

Key devices(Relay,Fuse) approved by UL and IEC

●More Smart

With digital monitor system App with WIFI

●Smart Design & Easy installation

Plug in & off

●More Quiet

Without fan, reduce the risk of fan failure

Technical Speciﬁcations

Solar Energy Storage System
Model		LFP 2600
Total Energy		2.56kWh
Usable Energy(DC)		2.2kWh
Voltage		96~112Vd.c
Nominal Voltage		102.4Vd.c
Efficiency		>97%
Nominal Current		15A
Nominal Dis-/Charge Power		1.5kW
Peak Power(Only Discharging)		3kW for 3sec.
Operating condition		Indoor
Operating Temperature	Charge	0℃~50℃
	Discharge	-10℃~55℃
Weight		27kg
Dimension(mm)		50044288mm
IP Rating		IP20
Protective Class		I
Max numbers of parallel or series connection		6
Warranty		10 years
Life Span		>15 years
Transportation		UN 38.3

Warranty of LFP 2600 Battery

This warranty specified below applies to LFP 2600 battery energy storage solution to consumer through authorized reseller. But the accessories and tool kits provided did not be included.

The units must only be used with controllers or equipment which is explicitly deemed compatible. In order to supply a high-quality service, you should make sure the unit keeps connected with Internet so that it could be remotely checked.

Warranty Period
The Warranty of LFP 2600 battery is valid for 10 years (5 years for free + 5 years appropriate costs):

The Warranty Period shall commence from the earlier of the following:
-The date when the first installation of the Warranted Products is completed;

-6 months after the shipment dispatch date.

-For the defective product within the extended period, only the costs for spareparts and materials replacement shall be assumed. We are not responsible for installation, transportation, labor costs and other expenses.

This Warranty period covers a capacity equivalent to 1 full cycle per day.

Full cycle:
Discharge the nominal capacity of a fully charged battery and fully charge it afterwards.
Micro cycles sum up to full cycles according to amount of energy charged and discharged.

Note:
Products are unable to protect itself from deep discharge/charging in condition of without communication connection.
The products without communication connection warranty period is 5(five)years (1 full cycle per day) from the sales date as mentioned in the seller’s invoice to the End-user (“Invoice Date”) .
Regarding Self-discharging degradation 180 days after ex-work is ensured.
