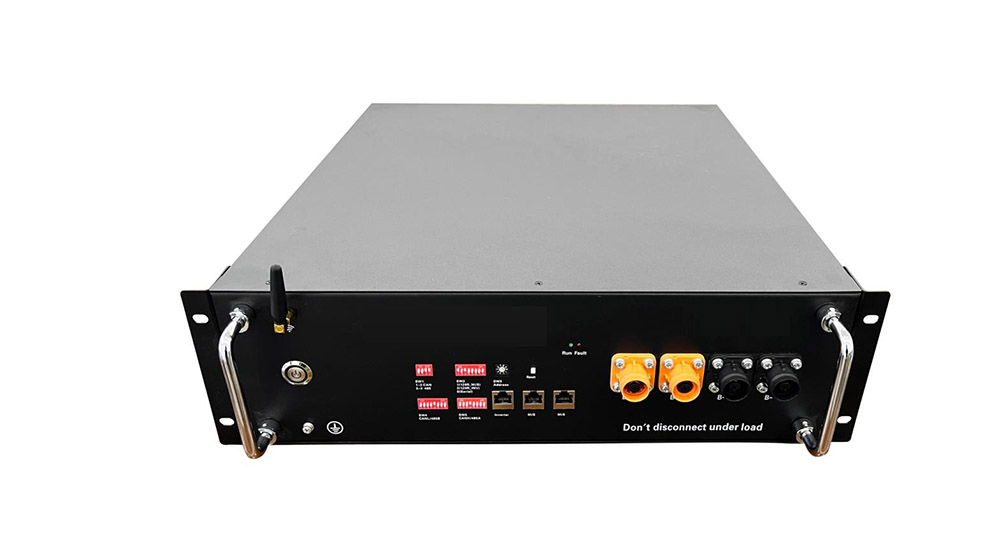

Model

LFP 5000

LFP 2400

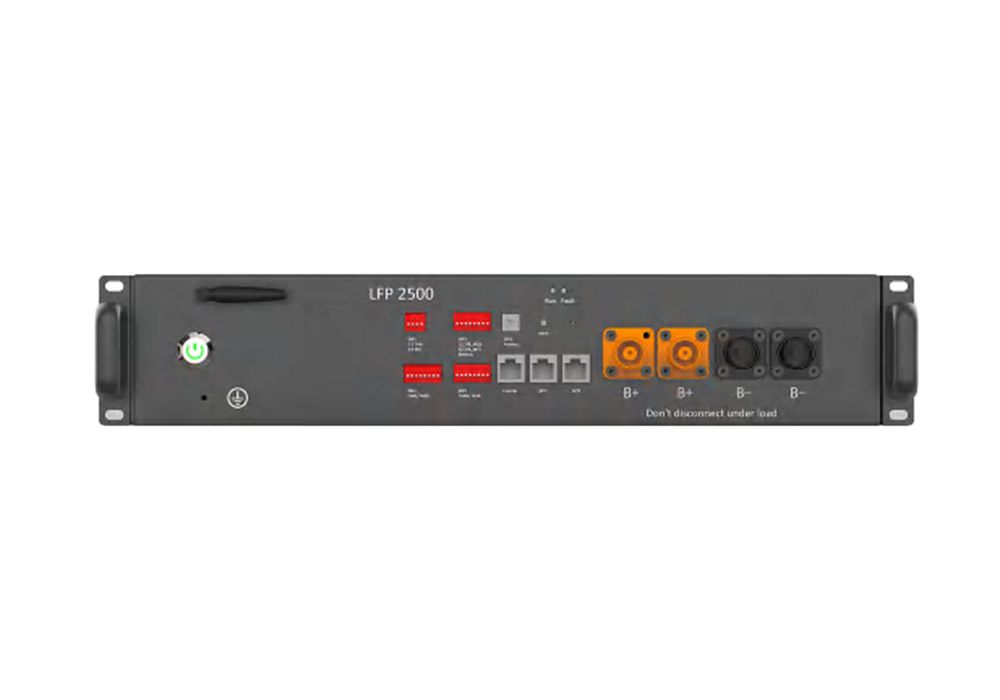

LFP 2500

LFP 2600HV

Total Energy*

5.1kWh

2.4kWh

2.5kWh

2.56kWh

Usable Energy(DC)*

4.8kWh

2.2kWh

2.3kWh

2.2kWh

Nominal Dis-/Charge Power

3.0kW

1.5kW

1.5kW

1.5kW

Peak Power(Only Discharge)

6kW for 3s

3kW for 3s

3kW for 3s

3kW for 3s

Constant Current(Only Discharge)

80A

40A

40A

20A

Voltage

48~56Vd.c

48~56Vd.c

48~56Vd.c

96~112Vd.c

Nominal Voltage

51.2Vd.c

51.2Vd.c

51.2Vd.c

102.4Vd.c

Nominal Current

60A

30A

30A

15A

Max. Charge Voltage

57.6Vd.c

57.6Vd.c

57.6Vd.c

115.2Vd.c

Weight

45kg

27.5kg

27kg

27kg

Dimension(mm)

500*448*135mm

500*442*133mm

500*442*88mm

500*442*88mm

Max.recommended DOD

90%

Operating Condition

Indoor

Operating
Temperature

Charge

From 0~50C

Discharge

From -10~55C

WIFI Frequency Range

2400MHz~2483MHz

Humidity

＜60%(No condensed water)

Over Voltage Category

II

Cooling Type

Natural cooling

Case Material

Metal

Color

Black or White

Installation

Wall mounting/Ground Installation

IP rating

IP 20

Protective Class

I

Max. Connection Number

8S/8P

8S/8P

8S/8P

4S

Warranty

10 years

Life Span

>15 years

Communication

CAN/ RS485

Protection Mode

Dual hardware protection

Battery Protection

Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature

Safety

Cell UL 1973

Cell UL 1973

Cell TUV

Cell TUV

CE/TUV

Hazardous Material Classification

9

Transportation

UN 38.3

Testing conditions based on temperature 25C at the beginning of life.
*Total Energy/Usable Energy measured under specific conditions 0.2C CC-CV

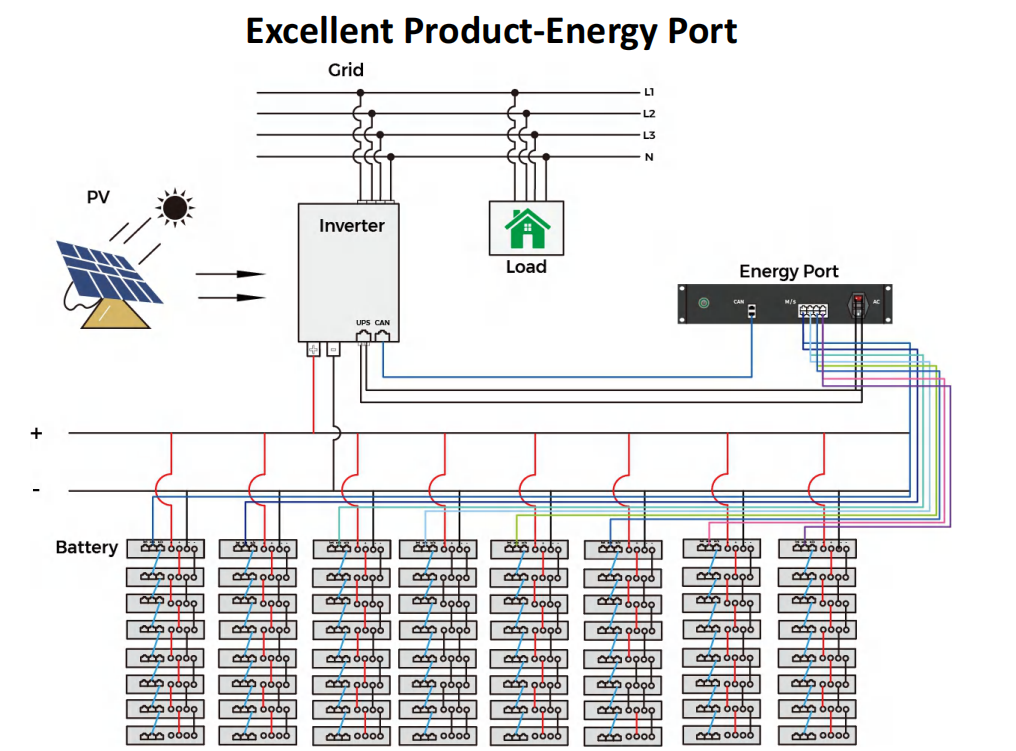

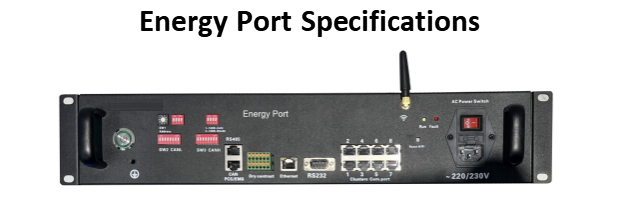

No.

Item

Date

1

Com. Interface

CAN/RS 485/232/Internet

2

Com. Interface

IP20

3

Size

300 X442X89mm

4

Weight

3.0kg

5

Temperature

Working

-20~65℃

Storage

-30~70℃

6

Warranty

3 years

7

Life Span

Over 15 years

8

Power Supply

~220/230/240V or backup battery

9

Com. Method

Protocol & Baud rate: Depended on Inverter
