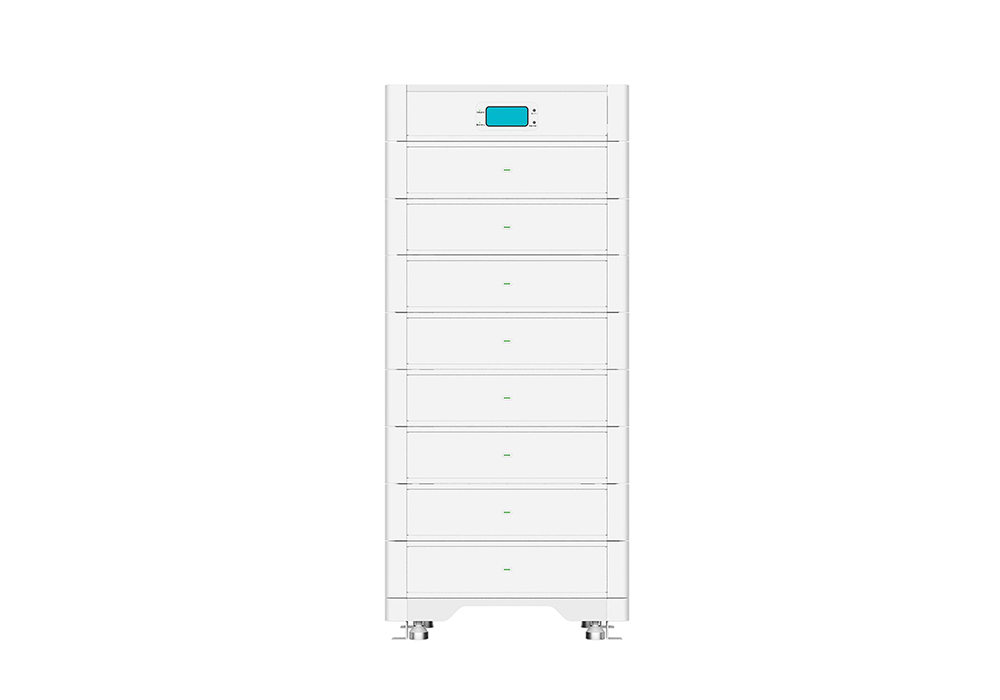

LFP 2 .4 -19.2 kWh Energy Storage Lithium ion Battery

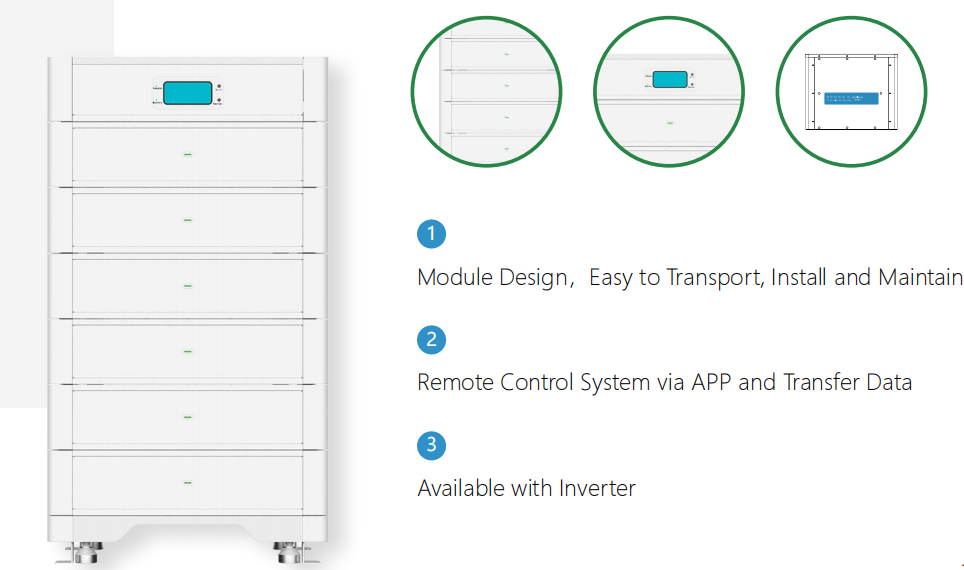

Safety and reliable LFP chemistry; Long service life; Intelligent BMS built-in; Compact size for easy installation; Diverse model options and Expansion; Many inverters compatible.

8618962607209

fly01@flynewenergy.com

8618962607209

LFP 2 .4 -19.2 kWh Energy Storage Lithium ion Battery

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Product Description

Household energy storage system, which is a solution for household power supply by using distributed photovoltaic and wind power generation; It can effectively realize the conversion and storage of energy, solve the imbalance between distributed generation and load, improve the stability and utilization rate of renewable energy power generation, achieve "self use" at the user end, and save electricity costs.

Features

Product Details

Technical Specifications

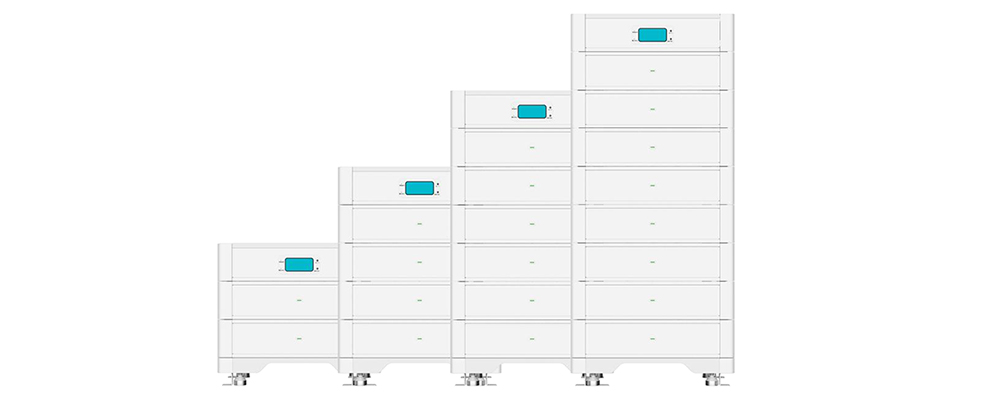

Energy Pod Items	2.4kWh	4.8kWh	7.2kWh	9.6kWh	12kWh	14.4kWh	16.8kWh	19.2kWh
Nominal Capacity	2.4kWh	4.8kWh	7.2kWh	9.6kWh	12kWh	14.4kWh	16.8kWh	19.2kWh
Size (L × W ×H) (mm)	650 x300x395	650x300x575	650x300x755	650x300x935	650x300x1115	650x300x1295	650x300x1475	650x300x1655
Weight	32kg	56kg	80kg	104kg	128kg	152kg	176kg	200kg
Maximum Usable Capacity	2.2kWh	4.4kWh	6.6kWh	8.8kWh	11kWh	13.2kWh	15.4kWh	17.6kWh
Rated Discharge/ Charge Current	30A	60A	90A	120A	120A	120A	120A	120A
Nominal Dis-/ Charge Power	1.4kW
Peak Power(Only Discharge)	2.9kW for 3s
Voltage	45~52.5Vd.c
Nominal Battery Operating Voltage	48V
Nominal Current	30A
Max. Battery Voltage	51.75V
Max.recommended DOD	90%
Operating Condition	Indoor or outdoor
Operating Temperature	From -10~50C
WIFI Frequency Range	2400MHz~2483MHz
Humidity	<60%(No condensed water)
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
Case Material	Aluminium alloy
IP rating	IP 65
Efficiency	96%
Protective Class	I
Max. Number of Parallel	8S/8P
Warranty	10 years
Life Span	>15 years
Communication	CAN/ RS485
Battery Protection	Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Hazardous Material Classification	9
Transportation	UN 38.3
Certification&safety standards

Company Advantage

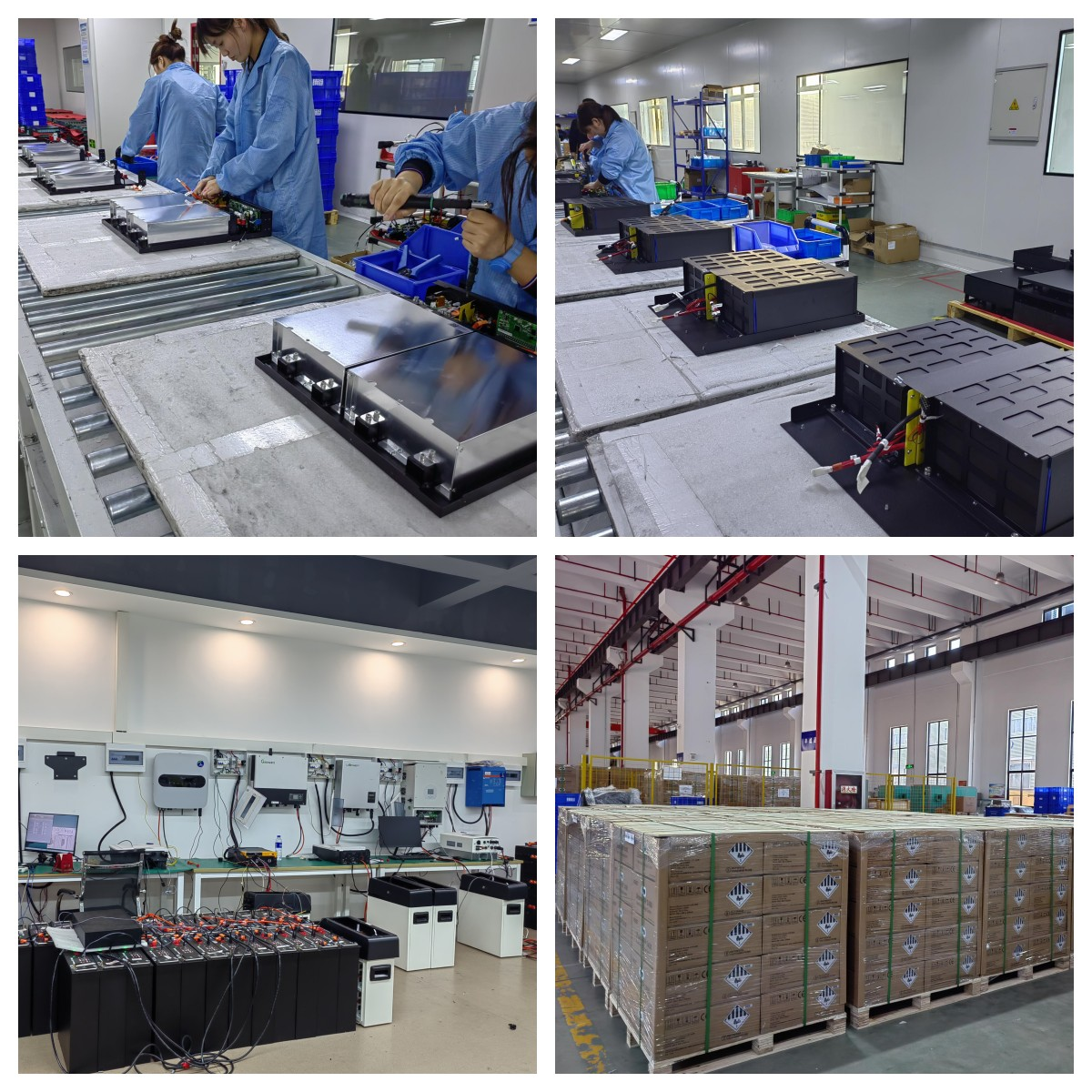

Jiangsu FLY Technology is a manufacturer specializing in the production and processing of lithium batteries, focusing on the production of lithium batteries for household energy storage systems.

At present, our lithium battery energy storage products have obtained ISO9001 certification, CE certification, and battery UN38.3 road transport certification, and have passed many tests such as explosion-proof, waterproof and anti-collision.
