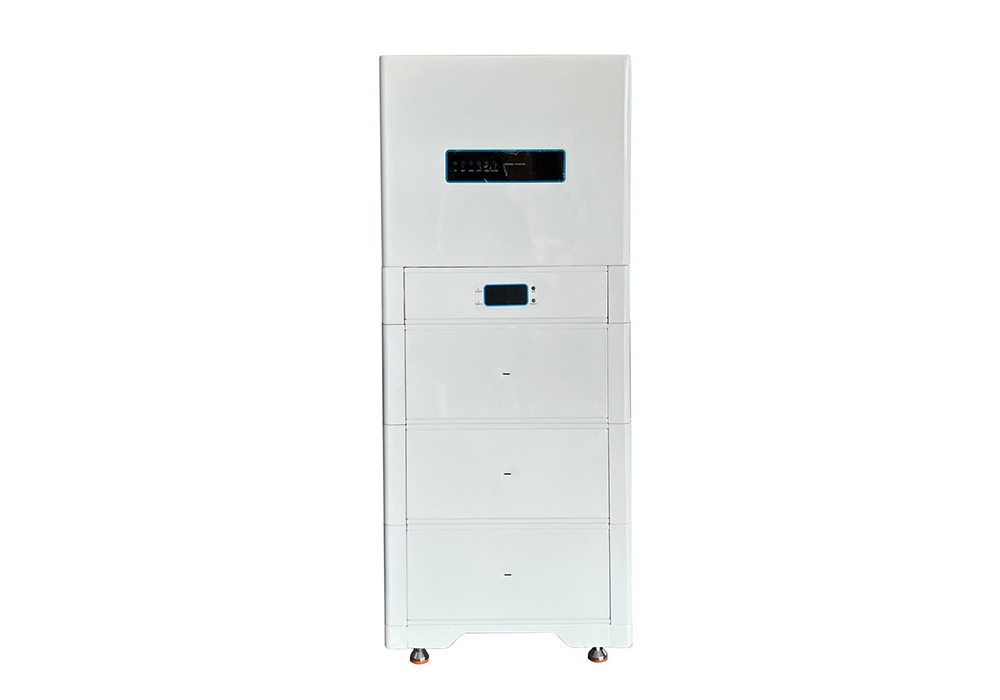

LFP 4 .8 -19.2 kWh Residential energy storage battery and system

Safety and reliable LFP chemistry; Long service life; Intelligent BMS built-in; Compact size for easy installation; Diverse model options and Expansion; Many inverters compatible.

8618962607209

fly01@flynewenergy.com

8618962607209

LFP 4 .8 -19.2 kWh Residential energy storage battery and system

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Technical Specifications

Energy Pod Items Nominal Capacity	4.8kWh 4.8kWh	9.6kWh 9.6kWh	14.4kWh 14.4kWh	19.2kWh 19.2kWh
Size (L × W ×H)(mm)	650x300x475	650x300x740	650x300x1005	650x300x1270
Weight	46kg	84kg	122kg	160kg
Maximum Usable Capacity	4.4kWh	8.8kWh	13.2kWh	17.6kWh
Rated Discharge/ Charge Current	60A	120A	120A	120A
Nominal Dis-/Charge Power	2.8kW
Peak Power(Only Discharge)	4.8kW for 3s
Voltage	45~52.5Vd.c
Nominal Battery Operating Voltage	48V
Nominal Current	60A
Max. Battery Voltage	51.75V
Max.recommended DOD	90%
Operating Condition	Indoor or outdoor
Operating Temperature	From -10~50C
WIFI Frequency Range	2400MHz~2483MHz
Humidity	<60%(No condensed water)
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
Case Material	Aluminium alloy
IP rating	IP 65
Efficiency	96%
Protective Class	I
Max. Number of Parallel	8S/8P
Warranty	10 years
Life Span	>15 years
Communication	CAN/ RS485
Battery Protection	Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Hazardous Material Class iﬁcation	9
Transportation	UN 38.3
Certification & safety standard

Product Details

Features

Product Testing

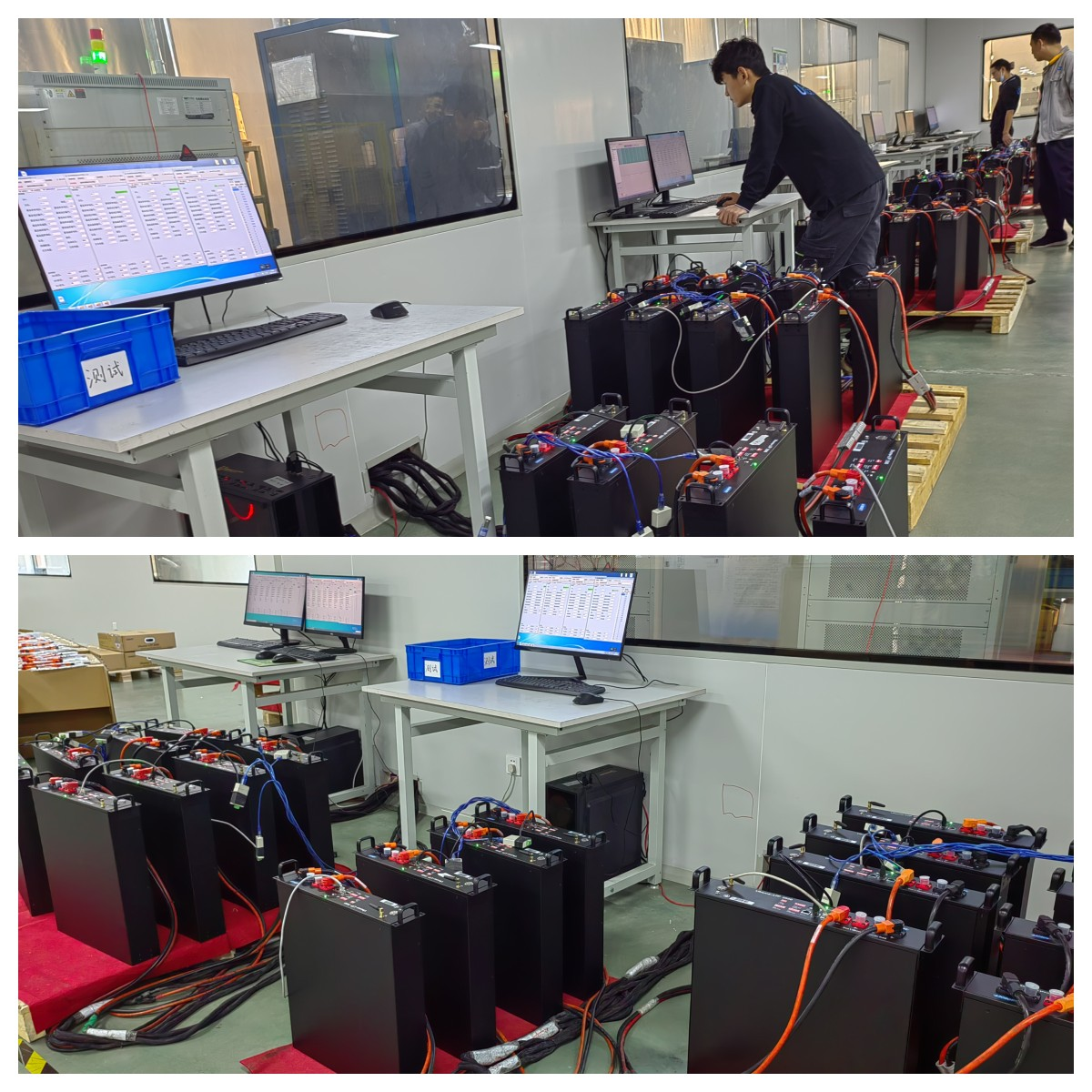

The product has complete quality inspection. Before delivery, each equipment must pass three tests to ensure 100% product qualification rate.

1. Each battery will be tested in the whole process of charging and discharging before shipment, and the data will be saved;

2. Test internal resistance and differential pressure;

3. Wifi distribution network (the background has online records).

Company Advantage

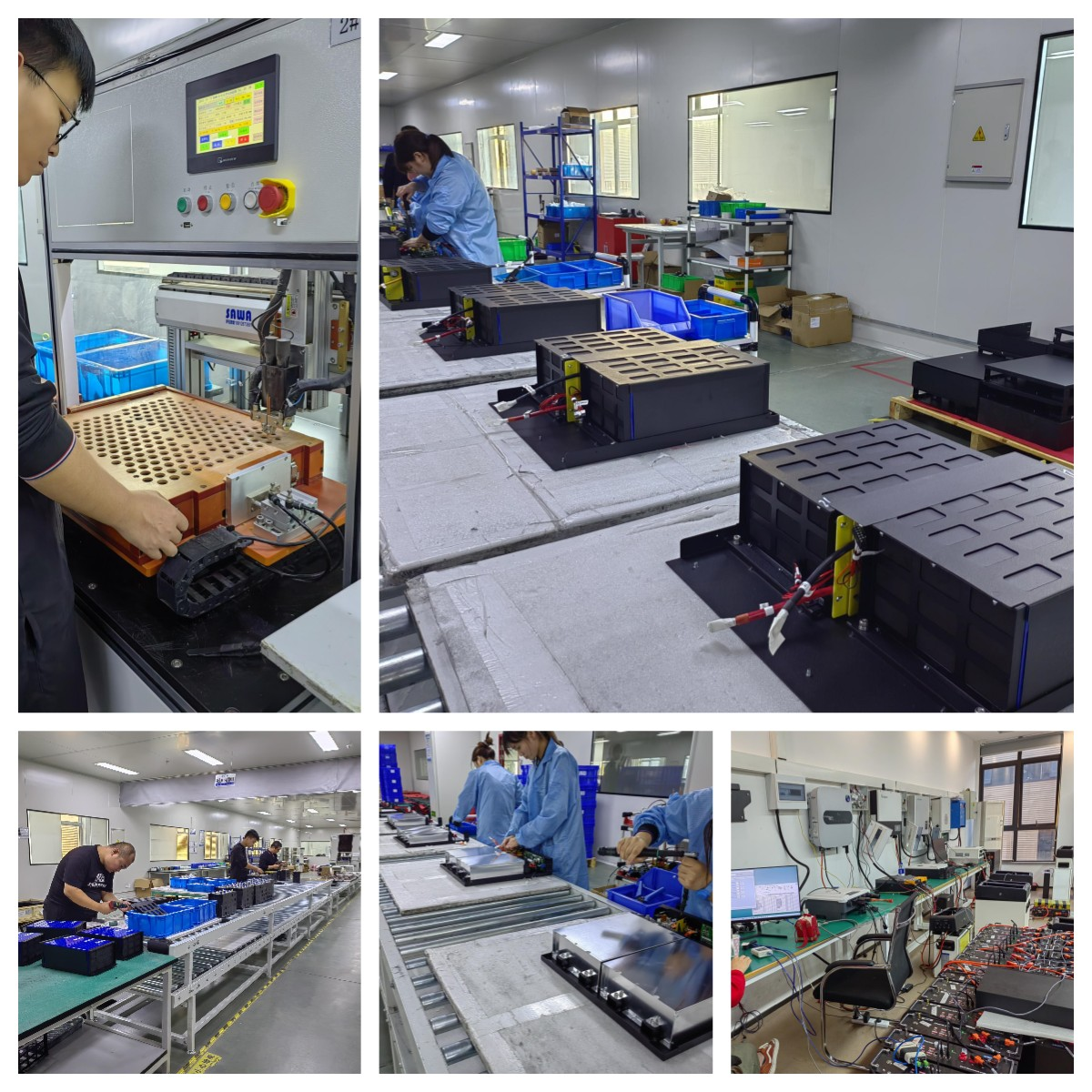

Jiangsu FLY Technology is a manufacturer specializing in the production and processing of lithium batteries, focusing on the production of lithium batteries for household energy storage systems.

At present, our lithium battery energy storage products have obtained ISO9001 certification, CE certification, and battery UN38.3 road transport certification, and have passed many tests such as explosion-proof, waterproof and anti-collision.
