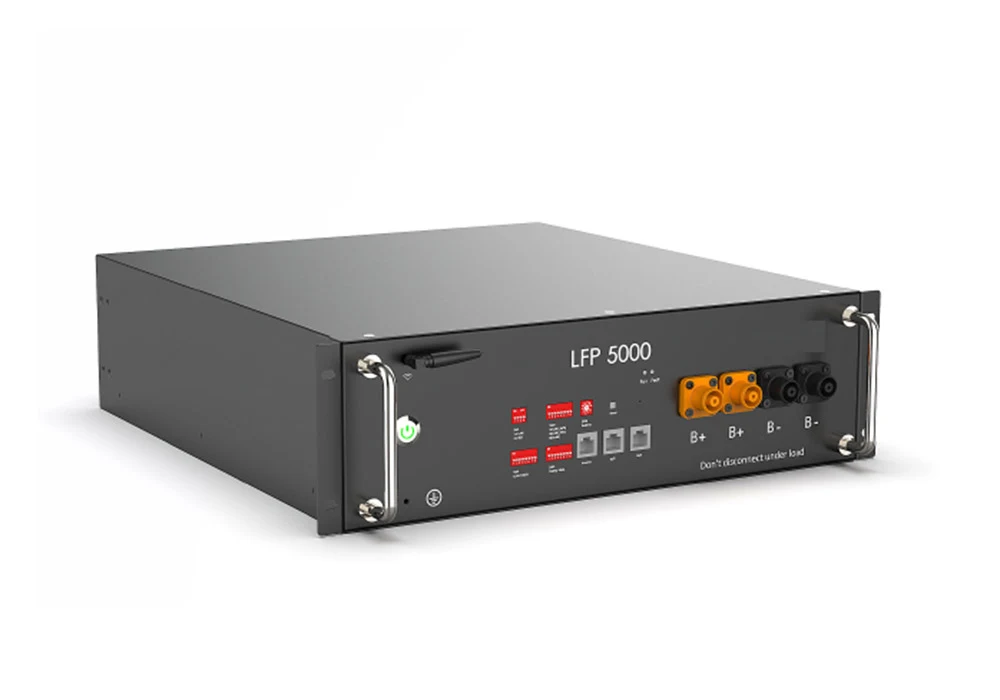

LFP 5000 Energy Storage Lithium Battery



The energy storage lithium battery is designed to meet the high safety performance of LiFePO4 battery and intelligent integrated BMS of home photovoltaic energy storage system, with long cycle life, light weight, small size, high safety, environmental protection and other advantages.

8618962607209

fly01@flynewenergy.com

8618962607209

LFP 5000 Energy Storage Lithium Battery
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Information
Description

The energy storage lithium battery is designed to meet the high safety performance of LiFePO4(lithium iron phosphate) battery and intelligent integrated BMS of home photovoltaic energy storage system, with long cycle life, light weight, small size, high safety, environmental protection and other advantages. The cycle can be 6000 times, fully suitable for daily charging and discharging application scenarios. Bring users excellent energy storage application experience.


Key Features
  • ●Assembly freely in series or parallel

Up to 8S8P(448V326.4KWH)

  • ●High energy efficiency

Energy efficiency (charge and discharge)>97%

  • ●High Rate charge & discharge

Nominal 0.6C, Max 0.8C

  • ●More Safety

Dual hardware &Triple software protection

  • ●Safe and Reliable BMS

Relay design instead of mosfet
  • ●Long Life

Reliable LFP cells,Cycle life >6000cycles

  • ●High Reliability

Key devices(Relay,Fuse) approved by UL and IEC

  • ●More Smart

With digital monitor system App with WIFI

  • ●Smart Design & Easy installation

Plug in & off

  • ●More Quiet

Without fan, reduce the risk of fan failure

Technical Specifications

Solar Energy Storage System

Model

LFP 5000

Total Energy

5.1kWh

Usable Energy(DC)

4.8kWh

Voltage

48~56Vd.c

Nominal Voltage

51.2Vd.c

Efficiency

>97%

Nominal Current

60A

Nominal Dis-/Charge Power

3.0kW

Peak Power(Only Discharging)

6kW for 3sec.

Operating condition

Indoor



Operating Temperature

Charge

0℃~50℃

Discharge

-10℃~55℃

Weight

45kg

Dimension(mm)

500*448*135mm

IP Rating

IP20

Protective Class

I

Max. Connection Number

8S/4P

Transportation

UN 38.3
