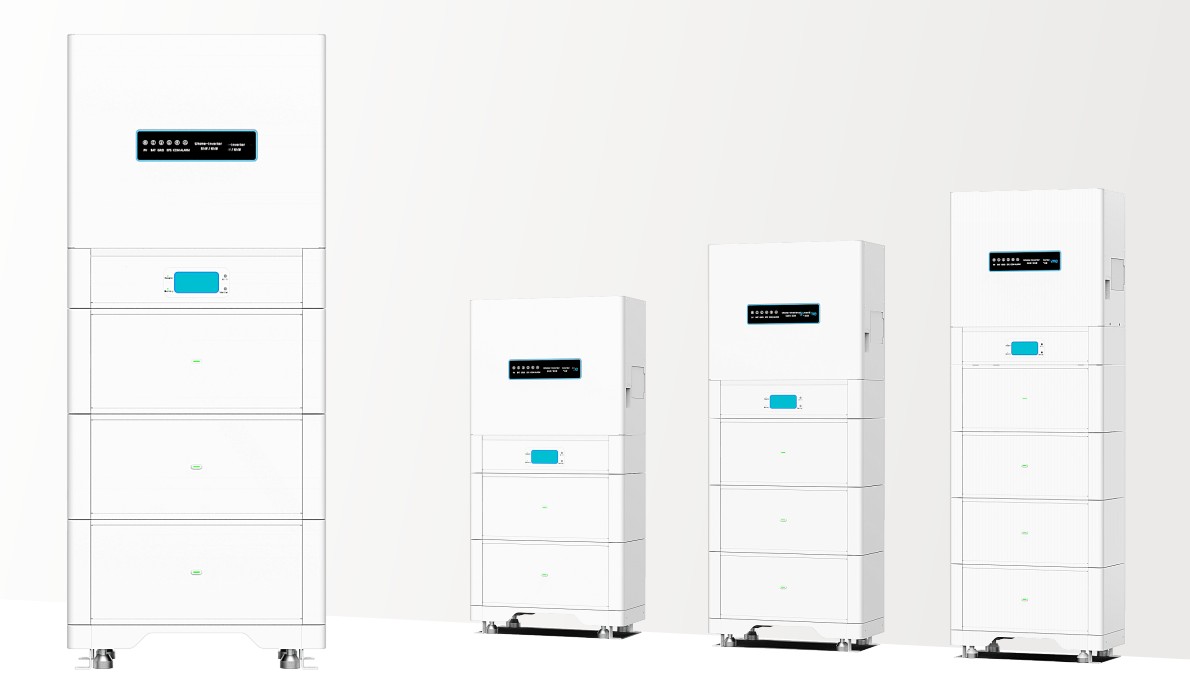

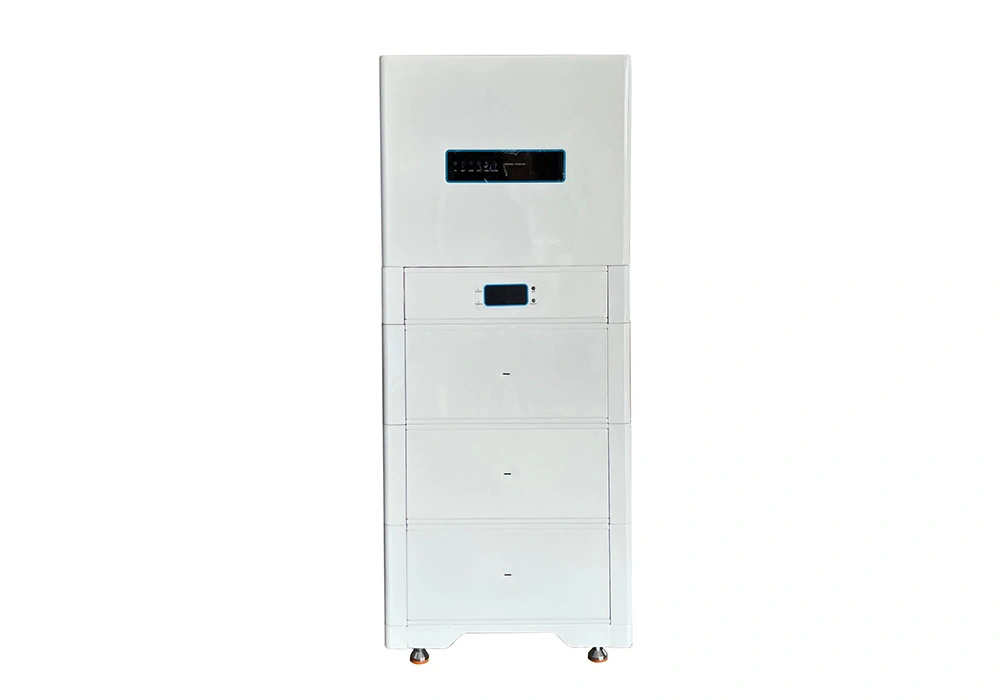

LFP 4.8-19.2 kWh All in one Lithium Battery Storage

This lithium Battery can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!

8618962607209

fly01@flynewenergy.com

8618962607209

LFP 4.8-19.2 kWh All in one Lithium Battery Storage

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Information

Features

Technical Specifications

Energy Pod Items	4.8kWh	9.6kWh	14.4kWh	19.2kWh
Nominal Capacity	4.8kWh	9.6kWh	14.4kWh	19.2kWh
Size (L × W ×H)(mm)	650X300X1015	650X300X1280	650X300X1545	650X300X1810
Weight	73kg	111kg	149kg	187kg
Maximum Usable Capacity	4.4kWh	8.8kWh	13.2kWh	17.6kWh
Rated Discharge/ Charge Current	60A	120A	120A	120A
Nominal Dis-/Charge Power	2.8kW
Peak Power(Only Discharge)	4.8kW for 3s
Voltage	45~52.5Vd.c
Nominal Battery Operating Voltage	48V
Nominal Current	60A
Max. Battery Voltage	51.75V
Max.recommended DOD	90%
Operating Condition	Indoor or outdoor
Operating Temperature	From -10~50C
WIFI Frequency Range	2400MHz~2483MHz
Humidity	<60%(No condensed water)
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
Case Material	Aluminium alloy
IP rating	IP 65
Efficiency	96%
On Grid	3kW / 4kW / 5kW / 6kW, 230V / 50Hz
Off Grid	3kW / 4kW/ 5KW / 6kW, 230V / 50Hz
Protective Class	I
Max. Number of Parallel	8S/8P
Warranty	10 years
Life Span	>15 years
Communication	CAN/ RS485
Battery Protection	Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Hazardous Material Classiﬁcation	9
Transportation	UN 38.3
Certiﬁcation & Safety Standard
